Water Ink Gluer Bundler Printer Slotter Die Cutter

Water Ink Flexo Bottom Printing Printer Slotter Die Cutter With Gluer Bundler High Speed

Technologic parameter

Features

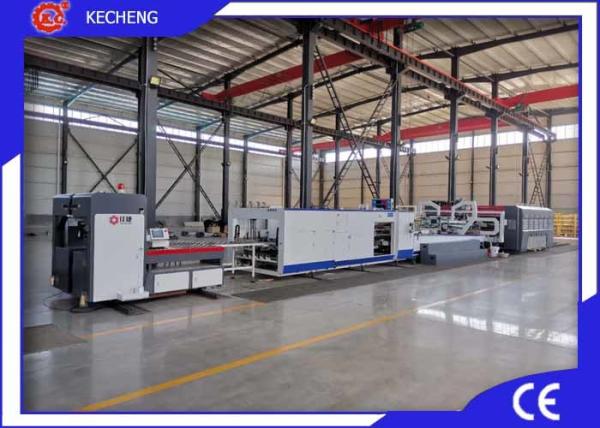

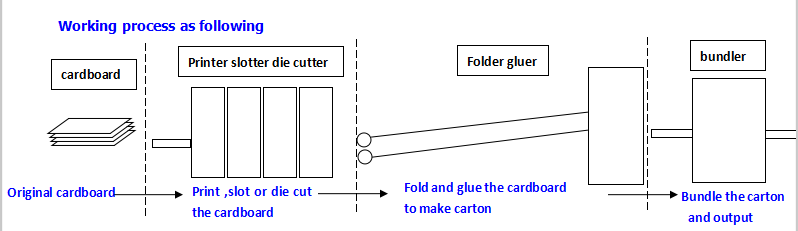

The whole inline consists of bottom printing printer slotter die cutter,top folding gluer and bundler. which speed can reach 200-250pcs/min, save more labor time and security.The carton will be made by this machine one time.especially,all the functions adjusted by computer control.very easy to learn for the workers.

BOTTOM PRINTING PRINTER

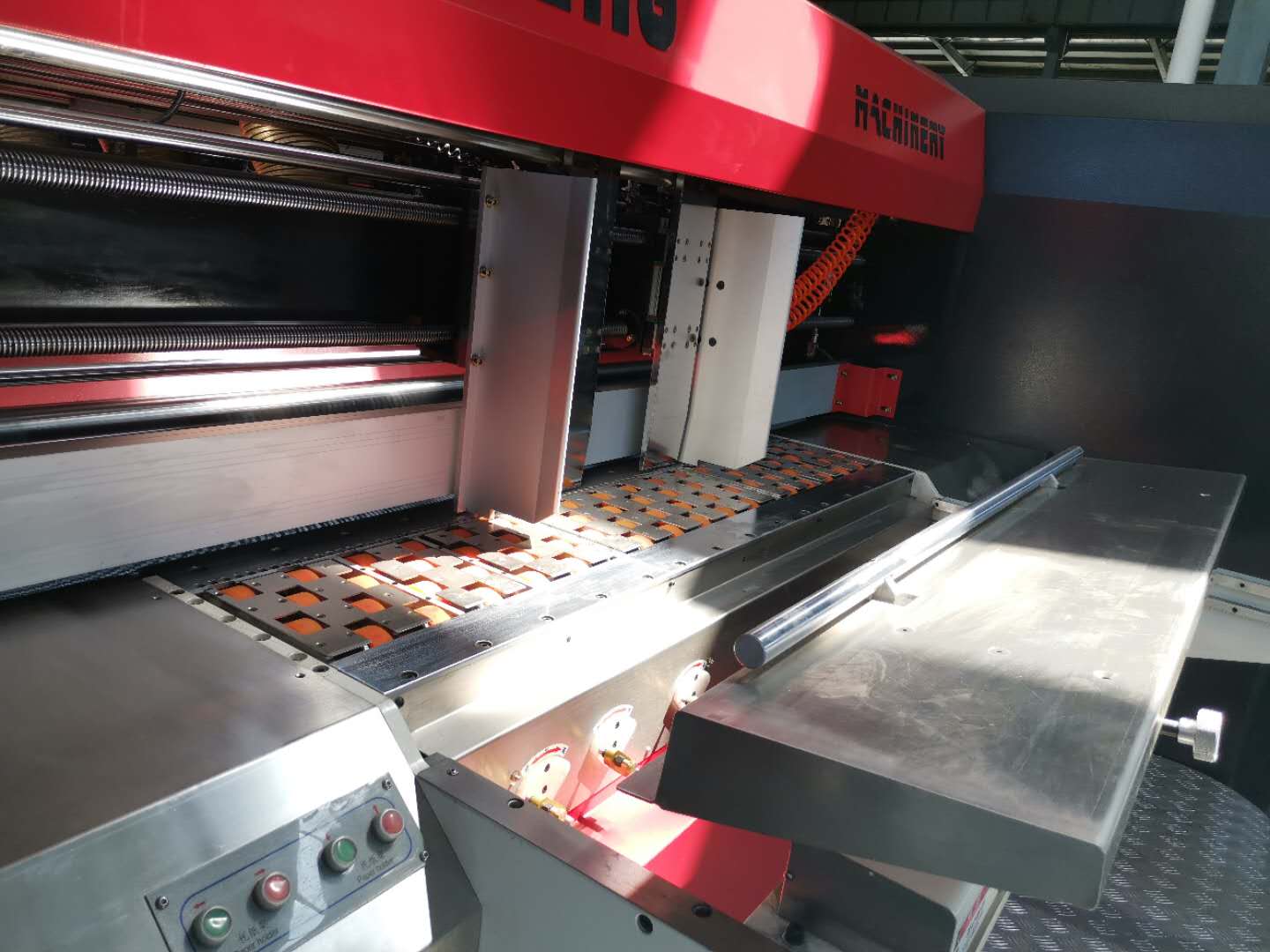

1 Lead edge feeder makes feeding easily and stable,all the baffles adjusted by electric control

2 The air volume can be made according to the different cardboard for smooth feeding.

3 All the feeding wheel are quick-movable , easy to be adjusted ,no need spanner.

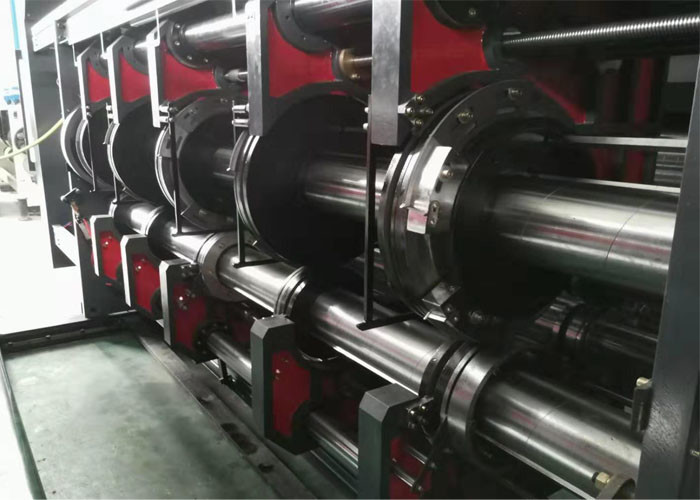

4 All the rollers undergo precise treatment,grinded and plated with rigid chrome and make balance rectification

5 All gears are made of 20CrMnTi,undergoes quenched and precised grinded for good printing, long life service and low running noise.

6 Japan NSK bearing adopted

7 All the intervals adjusted by PLC and touch screen,easy to operate

8 Roll to roll transfer or vacuum transfer for operation at printing unit

9 Rachet wheel printing plate fixing structure.

10 Registering:+/-0.5mm

11 Doctor blade chamber or rubber roller ink distribution for option

12 Automatic zeroing among the unts of feeding,printing,slotting and die cutting

13 Automatic reposition after washing the printing plate during printing

14 Automatic washing and ink-shortage alarming system installed for ink saving

15 Pre-creasing wheel,big creasing wheel and second creasing wheel at the slotting unit make the cardboard creasing better for folding

16 Steel cast slotting holder with linear guide rail and gear rail work together make slotting knife and cresing wheel move precise and smooth.

17 Anvil cover repairing knife installed

18 Maxdura ,Depak or CUE anvil cover for option.

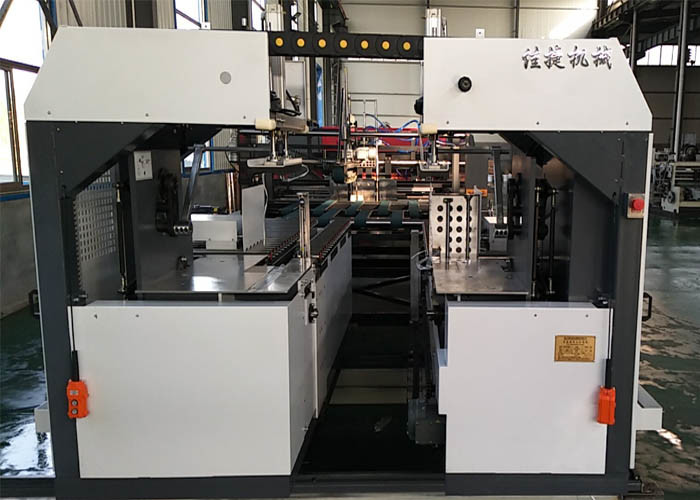

FOLDER GLUER

1 Gluer speed sychorized with printer

2 Waste remove blower installed

3 Second creasing wheel make the creasing line better for folding

4 Convey arm adjusted automatically

5 Upper and down belt extension can be adjusted as per different cardboard

6 Rectification structures avoid joint forming the fish tail

7 Inserting type collection or Drop type collection for option

8 Glue spraying system installed

9 Blower assist cardboard conveying smooth and precise

BUNDLER(OPTION)

1 Connect with folder gluer

2 Can move in lateral direction

3 Pneumatic flapping structure make the carton tidy and easy to bundle

4 Special string mouth design, makes the string output smooth and never broken

5 Easy to maintain and operate

6 Bundling speed 15-20 bundles per minute.
